1. Architectural Attributes and Synthesis of Round Silica
1.1 Morphological Meaning and Crystallinity

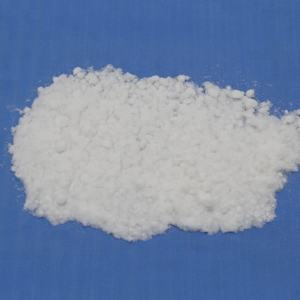

(Spherical Silica)
Round silica describes silicon dioxide (SiO TWO) bits crafted with an extremely uniform, near-perfect round shape, differentiating them from conventional uneven or angular silica powders originated from all-natural resources.
These particles can be amorphous or crystalline, though the amorphous type dominates industrial applications because of its premium chemical security, lower sintering temperature, and lack of phase shifts that can induce microcracking.
The round morphology is not naturally common; it has to be artificially achieved through controlled procedures that govern nucleation, development, and surface energy minimization.
Unlike smashed quartz or merged silica, which exhibit rugged sides and broad dimension distributions, spherical silica features smooth surface areas, high packaging density, and isotropic habits under mechanical stress and anxiety, making it excellent for accuracy applications.
The fragment size usually varies from tens of nanometers to several micrometers, with tight control over dimension circulation allowing predictable efficiency in composite systems.
1.2 Controlled Synthesis Paths
The main method for generating spherical silica is the Stöber process, a sol-gel technique established in the 1960s that entails the hydrolysis and condensation of silicon alkoxides– most typically tetraethyl orthosilicate (TEOS)– in an alcoholic remedy with ammonia as a driver.
By adjusting specifications such as reactant concentration, water-to-alkoxide ratio, pH, temperature level, and reaction time, researchers can exactly tune fragment size, monodispersity, and surface chemistry.
This approach returns very uniform, non-agglomerated spheres with exceptional batch-to-batch reproducibility, necessary for modern production.
Different techniques include flame spheroidization, where irregular silica bits are melted and improved right into spheres by means of high-temperature plasma or fire treatment, and emulsion-based methods that enable encapsulation or core-shell structuring.
For large-scale commercial manufacturing, salt silicate-based rainfall courses are likewise used, using cost-efficient scalability while keeping appropriate sphericity and pureness.
Surface area functionalization during or after synthesis– such as grafting with silanes– can present natural groups (e.g., amino, epoxy, or plastic) to boost compatibility with polymer matrices or allow bioconjugation.
( Spherical Silica)
2. Practical Properties and Efficiency Advantages
2.1 Flowability, Packing Density, and Rheological Actions
One of one of the most substantial advantages of spherical silica is its premium flowability contrasted to angular counterparts, a home crucial in powder processing, shot molding, and additive manufacturing.
The lack of sharp sides decreases interparticle friction, allowing dense, uniform packing with very little void room, which enhances the mechanical honesty and thermal conductivity of last composites.
In electronic packaging, high packaging density straight translates to decrease material in encapsulants, improving thermal stability and reducing coefficient of thermal development (CTE).
Moreover, spherical fragments impart positive rheological homes to suspensions and pastes, minimizing thickness and stopping shear enlarging, which makes sure smooth dispensing and uniform finishing in semiconductor fabrication.
This regulated circulation habits is important in applications such as flip-chip underfill, where exact material positioning and void-free dental filling are called for.
2.2 Mechanical and Thermal Stability
Spherical silica displays outstanding mechanical strength and elastic modulus, adding to the reinforcement of polymer matrices without inducing stress and anxiety focus at sharp edges.
When incorporated into epoxy materials or silicones, it enhances firmness, wear resistance, and dimensional security under thermal biking.
Its reduced thermal expansion coefficient (~ 0.5 × 10 ⁻⁶/ K) carefully matches that of silicon wafers and printed circuit boards, lessening thermal inequality anxieties in microelectronic tools.
Furthermore, spherical silica maintains structural integrity at elevated temperature levels (as much as ~ 1000 ° C in inert ambiences), making it appropriate for high-reliability applications in aerospace and auto electronic devices.
The mix of thermal stability and electrical insulation further enhances its utility in power components and LED packaging.
3. Applications in Electronic Devices and Semiconductor Industry
3.1 Duty in Digital Packaging and Encapsulation
Spherical silica is a keystone material in the semiconductor market, mostly made use of as a filler in epoxy molding substances (EMCs) for chip encapsulation.
Replacing typical uneven fillers with round ones has transformed product packaging modern technology by allowing greater filler loading (> 80 wt%), improved mold circulation, and minimized cord move throughout transfer molding.
This improvement supports the miniaturization of incorporated circuits and the growth of sophisticated plans such as system-in-package (SiP) and fan-out wafer-level packaging (FOWLP).
The smooth surface area of spherical particles also lessens abrasion of great gold or copper bonding cables, boosting gadget integrity and return.
Furthermore, their isotropic nature guarantees consistent stress and anxiety circulation, reducing the risk of delamination and splitting during thermal biking.
3.2 Use in Polishing and Planarization Processes
In chemical mechanical planarization (CMP), round silica nanoparticles work as rough agents in slurries created to polish silicon wafers, optical lenses, and magnetic storage space media.
Their consistent size and shape ensure constant product removal rates and minimal surface area flaws such as scrapes or pits.
Surface-modified spherical silica can be customized for details pH settings and reactivity, enhancing selectivity in between various products on a wafer surface area.
This precision enables the fabrication of multilayered semiconductor structures with nanometer-scale flatness, a prerequisite for sophisticated lithography and device integration.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Makes Use Of
Past electronics, round silica nanoparticles are significantly utilized in biomedicine as a result of their biocompatibility, ease of functionalization, and tunable porosity.
They act as medication distribution providers, where healing agents are loaded into mesoporous frameworks and released in feedback to stimulations such as pH or enzymes.
In diagnostics, fluorescently classified silica spheres act as stable, non-toxic probes for imaging and biosensing, surpassing quantum dots in certain organic settings.
Their surface area can be conjugated with antibodies, peptides, or DNA for targeted detection of pathogens or cancer biomarkers.
4.2 Additive Production and Compound Materials
In 3D printing, particularly in binder jetting and stereolithography, spherical silica powders boost powder bed density and layer uniformity, leading to greater resolution and mechanical toughness in printed porcelains.
As a reinforcing phase in steel matrix and polymer matrix compounds, it enhances tightness, thermal administration, and wear resistance without compromising processability.
Research study is also exploring crossbreed bits– core-shell frameworks with silica coverings over magnetic or plasmonic cores– for multifunctional materials in noticing and energy storage.
To conclude, round silica exemplifies how morphological control at the mini- and nanoscale can change a typical product into a high-performance enabler throughout varied innovations.
From protecting microchips to progressing clinical diagnostics, its distinct combination of physical, chemical, and rheological properties continues to drive technology in science and design.
