1. Product Features and Structural Design
1.1 Make-up and Crystalline Phases of Alumina

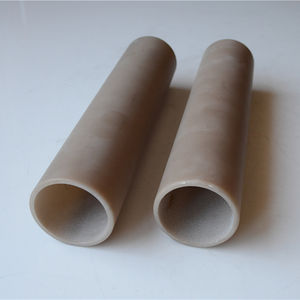

( Alumina Ceramic Tubes)
Alumina (Al Two O THREE) ceramic tubes are primarily made from high-purity aluminum oxide, with purity levels generally varying from 90% to 99.8%, relying on the designated application.
The dominant crystalline phase in completely thick, high-temperature sintered tubes is α-alumina (corundum), which shows a trigonal crystal framework and phenomenal thermodynamic stability.
This stage shift from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and causes a dense, interlacing microstructure that provides impressive mechanical stamina and chemical resistance.
Greater purity grades (≥ 99.5%) take full advantage of firmness, wear resistance, and dielectric efficiency, while lower-purity formulations might integrate secondary stages like mullite or lustrous grain boundary phases to decrease cost or dressmaker thermal development.
The capability to control grain size, porosity, and phase structure during handling permits designers to fine-tune alumina tubes for particular functional demands across diverse industrial domain names.
1.2 Mechanical, Thermal, and Electrical Feature
Alumina ceramic tubes exhibit an one-of-a-kind combination of physical buildings that make them crucial popular design atmospheres.
With a Vickers firmness surpassing 1500 HV, they are very resistant to abrasion and erosion, surpassing most steels and polymers in wear-prone systems.
Their compressive stamina can get to 2000 MPa, making it possible for structural usage under high mechanical loads, while flexural stamina generally ranges from 300 to 500 MPa, depending upon density and surface area coating.
Thermally, alumina maintains stability approximately 1700 ° C in oxidizing ambiences, with a low coefficient of thermal growth (~ 8 ppm/K), contributing to outstanding thermal shock resistance when correctly created.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to steels or aluminum nitride, it is sufficient for several high-temperature applications where electric insulation and architectural honesty are prioritized.
Electrically, alumina is a superior insulator with volume resistivity > 10 ¹⁴ Ω · cm and high dielectric stamina (> 15 kV/mm), making it optimal for electrical feedthroughs, sensor real estates, and high-voltage insulation.

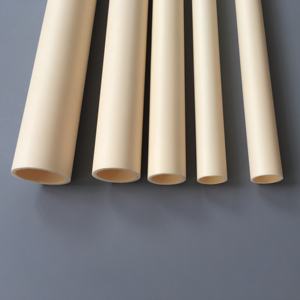

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Forming and Forming Methods
The manufacturing of alumina ceramic tubes involves innovative forming techniques customized to attain precise measurements, wall surface thickness harmony, and surface area high quality.
Typical techniques consist of extrusion, isostatic pushing, and slip spreading, each matched to different dimension arrays and efficiency demands.
Extrusion is widely made use of for long, straight tubes with regular cross-sections, where a plasticized alumina paste is forced via a die and cut to size prior to drying out and sintering.
For high-precision or thin-walled tubes, cold isostatic pushing (CIP) applies consistent stress from all directions to portable eco-friendly bodies, reducing distortion and boosting thickness homogeneity.
Slide casting, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold, is excellent for complex or large-diameter geometries with variable wall surface density.
After creating, tubes undergo cautious drying out to stop breaking, complied with by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional security.
2.2 Finishing and Quality Assurance
Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to achieve tight tolerances, smooth surface finishes, and exact inner and outer diameters.
Tolerances as tight as ± 0.01 mm are attainable for critical applications in semiconductor processing or analytical instrumentation.
Surface area roughness can be lowered to Ra < 0.1 µm, lessening fragment trapping and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom environments.
Non-destructive screening methods– consisting of ultrasonic evaluation, X-ray radiography, and dye penetrant testing– guarantee structural stability and lack of fractures or voids.
Dimensional metrology using coordinate measuring equipments (CMM) or laser scanning confirms conformity with design specs, particularly for personalized or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
One of one of the most engaging benefits of alumina ceramic tubes is their capability to endure severe thermal and chemical problems where metals and polymers fall short.
They stay dimensionally stable and mechanically durable in constant solution at temperatures over 1500 ° C, making them appropriate for heating system liners, thermocouple protection sheaths, and glowing heating system tubes.
Their inertness to molten steels (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and many acids (other than hydrofluoric and hot phosphoric acid) enables usage in metallurgical and chemical handling equipment.
In oxidizing and lowering ambiences, alumina does not break down or militarize unwanted responses, preserving procedure purity in semiconductor and glass manufacturing.
This chemical inertness additionally avoids contamination in high-purity fluid taking care of systems, consisting of those used in pharmaceutical and food handling markets.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma settings, alumina tubes serve as protecting barriers that maintain circuit honesty under high voltage and raised temperature.
They are utilized in high-intensity discharge (HID) lights, where they have ionized gases at temperatures exceeding 1000 ° C while standing up to electrical potentials of several kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric home windows or gas distribution elements, withstanding ion bombardment and thermal cycling without splitting or outgassing.
Their low dielectric loss and high arc resistance prevent electric tracking and malfunction, making sure long life span in switchgear and power transmission components.
These residential properties are critical in preserving procedure security and tools reliability in advanced production and energy systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Industrial Handling Equipments
Alumina ceramic tubes are indispensable to a wide range of commercial processes that require sturdiness under extreme problems.
In thermal processing, they work as safety sheaths for thermocouples and burner in kilns, heating systems, and warm treatment equipment, securing delicate elements from corrosive ambiences and mechanical wear.
In fluid handling, they transport hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows quick home heating and cooling cycles without failing, a crucial advantage in cyclic commercial operations.
In glass production, alumina tubes assist molten glass flows and support creating tools, resisting disintegration from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Combination
Past standard industrial uses, alumina tubes are discovering brand-new functions in cutting-edge innovations.
In semiconductor fabrication, ultra-pure alumina tubes are used in chemical vapor deposition (CVD) reactors and ion implantation systems, where particle generation and metal contamination have to be minimized.
In medical devices, biocompatible alumina tubes serve as insulating parts in medical devices, dental implants, and analysis sensing units.
Research is discovering functionalized alumina tubes with embedded sensors or conductive traces for smart structural tracking in aerospace and power systems.
Additive production (3D printing) of alumina is emerging as a method to generate complex tube geometries with interior channels or graded make-ups, enabling next-generation warmth exchangers and microreactors.
As markets press towards higher efficiency, cleaner processes, and better reliability, alumina ceramic tubes continue to develop as enabling parts in the infrastructure of contemporary technology.
In summary, alumina ceramic tubes represent a fully grown yet dynamically advancing class of engineered materials, incorporating exceptional thermal, mechanical, and electrical efficiency in a solitary inorganic channel.
Their versatility throughout extreme atmospheres ensures their continued relevance in both developed commercial systems and arising modern applications.
