1. Composition and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Security

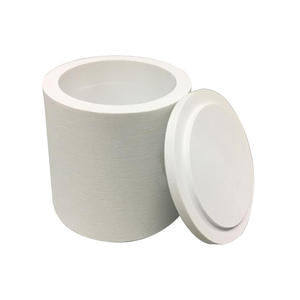

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from integrated silica, a synthetic type of silicon dioxide (SiO ₂) derived from the melting of natural quartz crystals at temperatures going beyond 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys phenomenal thermal shock resistance and dimensional stability under rapid temperature level adjustments.
This disordered atomic structure prevents bosom along crystallographic planes, making integrated silica much less vulnerable to breaking during thermal cycling contrasted to polycrystalline porcelains.
The material exhibits a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable among engineering products, enabling it to endure severe thermal gradients without fracturing– an important property in semiconductor and solar battery manufacturing.
Fused silica additionally maintains excellent chemical inertness versus many acids, liquified steels, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, relying on purity and OH content) permits continual operation at raised temperatures needed for crystal growth and steel refining procedures.
1.2 Purity Grading and Trace Element Control
The performance of quartz crucibles is highly dependent on chemical purity, especially the concentration of metallic impurities such as iron, sodium, potassium, light weight aluminum, and titanium.
Even trace quantities (components per million degree) of these contaminants can migrate right into molten silicon throughout crystal growth, deteriorating the electrical residential or commercial properties of the resulting semiconductor material.
High-purity grades utilized in electronic devices manufacturing generally contain over 99.95% SiO ₂, with alkali steel oxides limited to less than 10 ppm and shift steels below 1 ppm.
Pollutants stem from raw quartz feedstock or processing devices and are minimized with cautious choice of mineral sources and purification strategies like acid leaching and flotation protection.
In addition, the hydroxyl (OH) web content in fused silica affects its thermomechanical actions; high-OH kinds supply better UV transmission however reduced thermal stability, while low-OH versions are preferred for high-temperature applications because of minimized bubble development.

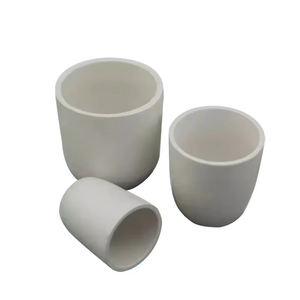

( Quartz Crucibles)
2. Production Refine and Microstructural Design
2.1 Electrofusion and Creating Strategies
Quartz crucibles are mostly produced through electrofusion, a procedure in which high-purity quartz powder is fed into a turning graphite mold within an electrical arc furnace.
An electric arc produced between carbon electrodes thaws the quartz fragments, which strengthen layer by layer to develop a seamless, thick crucible shape.
This method creates a fine-grained, homogeneous microstructure with very little bubbles and striae, essential for consistent heat circulation and mechanical honesty.
Alternative approaches such as plasma fusion and fire blend are made use of for specialized applications calling for ultra-low contamination or particular wall surface thickness profiles.
After casting, the crucibles undergo controlled cooling (annealing) to alleviate interior tensions and protect against spontaneous cracking throughout solution.
Surface area finishing, consisting of grinding and polishing, guarantees dimensional accuracy and decreases nucleation sites for unwanted condensation throughout use.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the crafted internal layer framework.
During production, the internal surface area is typically dealt with to advertise the development of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO TWO– upon initial home heating.
This cristobalite layer functions as a diffusion barrier, lowering direct communication between molten silicon and the underlying merged silica, therefore reducing oxygen and metal contamination.
Moreover, the visibility of this crystalline stage enhances opacity, improving infrared radiation absorption and advertising even more uniform temperature level distribution within the thaw.
Crucible developers carefully stabilize the thickness and continuity of this layer to avoid spalling or fracturing as a result of quantity modifications during stage shifts.
3. Functional Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Growth Processes
Quartz crucibles are crucial in the production of monocrystalline and multicrystalline silicon, functioning as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon kept in a quartz crucible and slowly drew upward while revolving, allowing single-crystal ingots to create.
Although the crucible does not straight contact the growing crystal, interactions between liquified silicon and SiO two walls result in oxygen dissolution right into the melt, which can influence service provider lifetime and mechanical toughness in ended up wafers.
In DS procedures for photovoltaic-grade silicon, massive quartz crucibles allow the controlled air conditioning of hundreds of kgs of molten silicon into block-shaped ingots.
Right here, coatings such as silicon nitride (Si four N FOUR) are related to the inner surface to prevent adhesion and help with easy launch of the strengthened silicon block after cooling down.
3.2 Degradation Devices and Life Span Limitations
In spite of their toughness, quartz crucibles weaken during repeated high-temperature cycles as a result of numerous interrelated devices.
Viscous flow or deformation happens at extended exposure above 1400 ° C, resulting in wall thinning and loss of geometric honesty.
Re-crystallization of fused silica right into cristobalite creates internal tensions because of volume growth, potentially triggering splits or spallation that infect the melt.
Chemical disintegration occurs from reduction responses in between molten silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), creating unpredictable silicon monoxide that escapes and deteriorates the crucible wall surface.
Bubble formation, driven by entraped gases or OH groups, better endangers architectural strength and thermal conductivity.
These degradation pathways restrict the variety of reuse cycles and necessitate specific procedure control to take full advantage of crucible life-span and item yield.
4. Arising Advancements and Technical Adaptations
4.1 Coatings and Composite Alterations
To improve performance and durability, progressed quartz crucibles include functional finishings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica coatings boost release attributes and lower oxygen outgassing throughout melting.
Some manufacturers integrate zirconia (ZrO ₂) particles into the crucible wall to increase mechanical stamina and resistance to devitrification.
Study is continuous into totally transparent or gradient-structured crucibles made to optimize induction heat transfer in next-generation solar furnace styles.
4.2 Sustainability and Recycling Obstacles
With enhancing demand from the semiconductor and photovoltaic sectors, sustainable use of quartz crucibles has become a concern.
Spent crucibles polluted with silicon deposit are challenging to recycle as a result of cross-contamination dangers, bring about significant waste generation.
Efforts focus on establishing reusable crucible linings, enhanced cleansing methods, and closed-loop recycling systems to recover high-purity silica for second applications.
As gadget effectiveness require ever-higher material pureness, the function of quartz crucibles will continue to evolve with technology in products scientific research and process engineering.
In summary, quartz crucibles stand for a vital user interface in between raw materials and high-performance electronic items.
Their one-of-a-kind mix of purity, thermal strength, and structural style enables the fabrication of silicon-based modern technologies that power contemporary computer and renewable resource systems.
