Introduction: Key devices in power electronic devices
Silicon-controlled rectifiers (SCRs), likewise called thyristors, are semiconductor power gadgets with a four-layer three-way joint framework (PNPN). Since its introduction in the 1950s, SCRs have been commonly made use of in commercial automation, power systems, home device control and other areas because of their high hold up against voltage, large existing bring ability, rapid response and basic control. With the development of modern technology, SCRs have progressed into numerous types, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences in between these kinds are not only shown in the structure and functioning principle, but also establish their applicability in various application scenarios. This post will certainly start from a technical point of view, incorporated with details criteria, to deeply evaluate the primary distinctions and common uses these four SCRs.
Unidirectional SCR: Standard and stable application core
Unidirectional SCR is one of the most standard and usual sort of thyristor. Its structure is a four-layer three-junction PNPN setup, including three electrodes: anode (A), cathode (K) and entrance (G). It just allows present to stream in one instructions (from anode to cathode) and activates after the gate is triggered. Once turned on, even if the gate signal is removed, as long as the anode current is more than the holding current (normally less than 100mA), the SCR remains on.

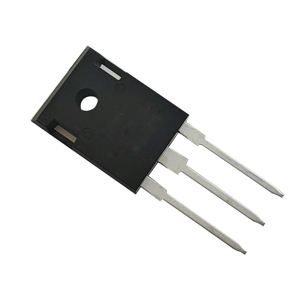

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and existing resistance, with an ahead repeated peak voltage (V DRM) of as much as 6500V and a ranked on-state typical current (ITAV) of as much as 5000A. Consequently, it is extensively made use of in DC electric motor control, industrial heating systems, uninterruptible power supply (UPS) correction components, power conditioning devices and other celebrations that require constant transmission and high power processing. Its advantages are basic framework, inexpensive and high dependability, and it is a core component of several traditional power control systems.
Bidirectional SCR (TRIAC): Perfect for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, also called TRIAC, can achieve bidirectional transmission in both favorable and negative half cycles. This structure contains 2 anti-parallel SCRs, which allow TRIAC to be caused and turned on at any moment in the AC cycle without altering the circuit link technique. The balanced conduction voltage series of TRIAC is generally ± 400 ~ 800V, the maximum load current is about 100A, and the trigger current is much less than 50mA.
Due to the bidirectional conduction characteristics of TRIAC, it is especially suitable for air conditioner dimming and speed control in family appliances and customer electronic devices. For instance, tools such as light dimmers, follower controllers, and ac unit follower rate regulatory authorities all depend on TRIAC to achieve smooth power regulation. On top of that, TRIAC likewise has a reduced driving power requirement and appropriates for integrated style, so it has actually been widely made use of in smart home systems and small devices. Although the power thickness and changing speed of TRIAC are not comparable to those of brand-new power devices, its low cost and convenient use make it an essential gamer in the area of small and moderate power a/c control.
Gateway Turn-Off Thyristor (GTO): A high-performance rep of active control
Entrance Turn-Off Thyristor (GTO) is a high-performance power device created on the basis of typical SCR. Unlike normal SCR, which can only be turned off passively, GTO can be turned off actively by applying an adverse pulse current to the gate, hence achieving even more adaptable control. This feature makes GTO perform well in systems that need constant start-stop or rapid reaction.

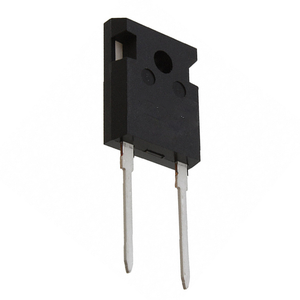

(Thyristor Rectifier)
The technological specifications of GTO show that it has very high power handling capacity: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can reach 6000V, and the maximum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency indicators make GTO widely utilized in high-power scenarios such as electric engine traction systems, large inverters, industrial electric motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complicated and has high switching losses, its performance under high power and high vibrant action demands is still irreplaceable.
Light-controlled thyristor (LTT): A reliable option in the high-voltage isolation atmosphere
Light-controlled thyristor (LTT) utilizes optical signals rather than electric signals to activate conduction, which is its biggest feature that differentiates it from various other kinds of SCRs. The optical trigger wavelength of LTT is usually in between 850nm and 950nm, the feedback time is gauged in nanoseconds, and the insulation level can be as high as 100kV or above. This optoelectronic seclusion device significantly enhances the system’s anti-electromagnetic interference ability and security.
LTT is mostly made use of in ultra-high voltage direct present transmission (UHVDC), power system relay security devices, electromagnetic compatibility protection in clinical devices, and armed forces radar interaction systems and so on, which have extremely high requirements for safety and security and stability. For instance, numerous converter terminals in China’s “West-to-East Power Transmission” task have taken on LTT-based converter valve components to make certain stable procedure under incredibly high voltage problems. Some advanced LTTs can additionally be combined with gate control to accomplish bidirectional conduction or turn-off functions, additionally expanding their application array and making them an excellent option for resolving high-voltage and high-current control problems.
