1. Material Fundamentals and Microstructural Design
1.1 Structure and Crystallographic Security of Alumina

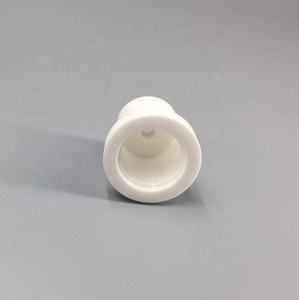

(Alumina Ceramic Nozzles)
Alumina (Al Two O SIX), especially in its alpha stage, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, supplying extraordinary thermal stability, chemical inertness, and mechanical toughness at raised temperatures.
High-purity alumina (commonly 95– 99.9% Al Two O TWO) is chosen for nozzle applications due to its minimal pollutant content, which minimizes grain border weakening and boosts resistance to thermal and chemical destruction.
The microstructure, containing penalty, equiaxed grains, is engineered during sintering to lessen porosity and maximize thickness, straight influencing the nozzle’s erosion resistance and structural stability under high-velocity liquid circulation.
Additives such as MgO are typically introduced in trace total up to hinder unusual grain growth during sintering, ensuring a consistent microstructure that sustains lasting reliability.
1.2 Mechanical and Thermal Properties Relevant to Nozzle Performance
Alumina porcelains display a Vickers firmness surpassing 1800 HV, making them highly resistant to rough wear from particulate-laden liquids, a crucial characteristic in applications such as sandblasting and abrasive waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive strength over 2 Grade point average, alumina nozzles maintain dimensional security under high-pressure procedure, usually ranging from 100 to 400 MPa in industrial systems.
Thermally, alumina keeps its mechanical buildings up to 1600 Ā° C, with a reduced thermal growth coefficient (~ 8 Ć 10 ā»ā¶/ K) that gives exceptional resistance to thermal shock– important when exposed to quick temperature variations during start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m Ā· K) is sufficient to dissipate localized warmth without causing thermal slopes that might result in splitting, stabilizing insulation and warmth management demands.
2. Production Processes and Geometric Accuracy
2.1 Forming and Sintering Methods for Nozzle Construction
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into an environment-friendly body using methods such as chilly isostatic pressing (CIP), injection molding, or extrusion, relying on the desired geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pressing applies consistent stress from all instructions, generating a homogeneous density distribution critical for lessening flaws during sintering.
Shot molding is used for intricate nozzle shapes with internal tapers and great orifices, permitting high dimensional accuracy and reproducibility in mass production.
After shaping, the eco-friendly compacts undertake a two-stage thermal treatment: debinding to remove natural binders and sintering at temperature levels between 1500 Ā° C and 1650 Ā° C to achieve near-theoretical density via solid-state diffusion.
Precise control of sintering environment and heating/cooling prices is vital to prevent bending, fracturing, or grain coarsening that might jeopardize nozzle efficiency.
2.2 Machining, Polishing, and Quality Control
Post-sintering, alumina nozzles frequently call for precision machining to attain limited resistances, particularly in the orifice region where flow characteristics are most sensitive to surface finish and geometry.
Diamond grinding and lapping are made use of to refine interior and outside surfaces, attaining surface area roughness worths listed below 0.1 Āµm, which minimizes circulation resistance and protects against fragment buildup.
The orifice, normally varying from 0.3 to 3.0 mm in size, have to be without micro-cracks and chamfers to make sure laminar circulation and constant spray patterns.
Non-destructive testing approaches such as optical microscopy, X-ray examination, and stress biking tests are used to verify structural stability and performance uniformity before release.
Personalized geometries, consisting of convergent-divergent (de Laval) accounts for supersonic flow or multi-hole selections for fan spray patterns, are progressively produced using innovative tooling and computer-aided layout (CAD)-driven production.
3. Useful Advantages Over Alternative Nozzle Materials
3.1 Superior Disintegration and Deterioration Resistance
Contrasted to metal (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina displays far higher resistance to abrasive wear, specifically in settings involving silica sand, garnet, or various other difficult abrasives utilized in surface prep work and cutting.
Steel nozzles degrade swiftly as a result of micro-fracturing and plastic contortion, needing regular substitute, whereas alumina nozzles can last 3– 5 times much longer, significantly decreasing downtime and operational expenses.
In addition, alumina is inert to many acids, alkalis, and solvents, making it suitable for chemical spraying, etching, and cleansing processes where metallic elements would corrode or infect the fluid.
This chemical security is especially beneficial in semiconductor manufacturing, pharmaceutical processing, and food-grade applications calling for high pureness.
3.2 Thermal and Electric Insulation Properties
Alumina’s high electrical resistivity (> 10 Ā¹ā“ Ī© Ā· cm) makes it ideal for use in electrostatic spray covering systems, where it prevents cost leakage and guarantees uniform paint atomization.
Its thermal insulation capability allows risk-free operation in high-temperature splashing environments, such as flame splashing or thermal cleaning, without warmth transfer to surrounding elements.
Unlike steels, alumina does not militarize unwanted chain reaction in reactive liquid streams, protecting the integrity of sensitive formulations.
4. Industrial Applications and Technological Influence
4.1 Functions in Abrasive Jet Machining and Surface Area Treatment
Alumina ceramic nozzles are important in rough blasting systems for corrosion removal, paint removing, and surface area texturing in auto, aerospace, and building sectors.
Their capability to keep a constant orifice diameter over extended usage makes certain uniform abrasive rate and effect angle, straight affecting surface coating top quality and process repeatability.
In unpleasant waterjet cutting, alumina focusing tubes lead the high-pressure water-abrasive mixture, enduring abrasive forces that would rapidly degrade softer materials.
4.2 Use in Additive Production, Spray Finish, and Liquid Control
In thermal spray systems, such as plasma and flame splashing, alumina nozzles straight high-temperature gas flows and liquified fragments onto substratums, benefiting from their thermal shock resistance and dimensional stability.
They are likewise utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance guarantees lasting dosing precision.
In 3D printing, especially in binder jetting and product extrusion, alumina nozzles provide great powders or viscous pastes with minimal clogging or wear.
Emerging applications consist of microfluidic systems and lab-on-a-chip devices, where miniaturized alumina elements offer longevity and biocompatibility.
In summary, alumina ceramic nozzles represent an important junction of products scientific research and commercial engineering.
Their outstanding mix of hardness, thermal security, and chemical resistance makes it possible for reliable performance in a few of one of the most demanding fluid handling atmospheres.
As industrial procedures push toward greater pressures, finer resistances, and longer service intervals, alumina porcelains continue to set the standard for resilient, high-precision circulation control components.
