1. Material Basics and Microstructural Characteristics
1.1 Structure and Crystallographic Quality of Al ā O THREE
(Alumina Ceramic Ballsļ¼ Alumina Ceramic Balls)

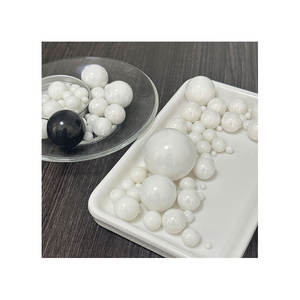

Alumina ceramic rounds are spherical parts produced from light weight aluminum oxide (Al ā O FOUR), a fully oxidized, polycrystalline ceramic that shows extraordinary firmness, chemical inertness, and thermal security.
The main crystalline phase in high-performance alumina balls is Ī±-alumina, which takes on a corundum-type hexagonal close-packed structure where aluminum ions occupy two-thirds of the octahedral interstices within an oxygen anion lattice, providing high latticework power and resistance to stage change.
Industrial-grade alumina spheres usually consist of 85% to 99.9% Al Two O TWO, with purity directly affecting mechanical toughness, use resistance, and corrosion performance.
High-purity qualities (ā„ 95% Al Two O ā) are sintered to near-theoretical density (> 99%) utilizing sophisticated techniques such as pressureless sintering or warm isostatic pushing, reducing porosity and intergranular defects that might act as tension concentrators.
The resulting microstructure includes penalty, equiaxed grains evenly dispersed throughout the quantity, with grain dimensions typically ranging from 1 to 5 micrometers, optimized to balance sturdiness and hardness.
1.2 Mechanical and Physical Property Profile
Alumina ceramic spheres are renowned for their severe hardness– gauged at around 1800– 2000 HV on the Vickers scale– going beyond most steels and measuring up to tungsten carbide, making them excellent for wear-intensive settings.
Their high compressive strength (as much as 2500 MPa) makes certain dimensional stability under tons, while low elastic contortion boosts accuracy in rolling and grinding applications.
Despite their brittleness about steels, alumina balls exhibit excellent fracture toughness for porcelains, particularly when grain development is managed throughout sintering.
They preserve architectural stability across a broad temperature level array, from cryogenic problems as much as 1600 Ā° C in oxidizing environments, much surpassing the thermal restrictions of polymer or steel equivalents.
Additionally, their reduced thermal development coefficient (~ 8 Ć 10 ā»ā¶/ K) lessens thermal shock susceptibility, allowing usage in rapidly fluctuating thermal atmospheres such as kilns and heat exchangers.
2. Production Processes and Quality Control
()
2.1 Forming and Sintering Methods
The production of alumina ceramic spheres starts with high-purity alumina powder, often derived from calcined bauxite or chemically precipitated hydrates, which is grated to achieve submicron bit size and slim dimension circulation.
Powders are after that developed right into round eco-friendly bodies utilizing techniques such as extrusion-spheronization, spray drying out, or round creating in revolving frying pans, depending upon the desired size and set range.
After forming, environment-friendly rounds go through a binder burnout stage complied with by high-temperature sintering, generally in between 1500 Ā° C and 1700 Ā° C, where diffusion devices drive densification and grain coarsening.
Accurate control of sintering ambience (air or regulated oxygen partial pressure), home heating rate, and dwell time is essential to attaining uniform contraction, spherical geometry, and minimal internal issues.
For ultra-high-performance applications, post-sintering therapies such as hot isostatic pressing (HIP) may be put on get rid of residual microporosity and even more enhance mechanical reliability.
2.2 Accuracy Finishing and Metrological Verification
Complying with sintering, alumina spheres are ground and brightened utilizing diamond-impregnated media to accomplish limited dimensional tolerances and surface area coatings comparable to bearing-grade steel spheres.
Surface roughness is typically reduced to less than 0.05 Ī¼m Ra, minimizing friction and use in vibrant call scenarios.
Vital high quality criteria include sphericity (variance from ideal roundness), diameter variation, surface area honesty, and density harmony, every one of which are determined making use of optical interferometry, coordinate determining equipments (CMM), and laser profilometry.
International criteria such as ISO 3290 and ANSI/ABMA specify resistance grades for ceramic balls utilized in bearings, making sure interchangeability and efficiency uniformity throughout producers.
Non-destructive screening techniques like ultrasonic assessment or X-ray microtomography are utilized to identify inner splits, voids, or additions that could endanger long-lasting reliability.
3. Practical Advantages Over Metallic and Polymer Counterparts
3.1 Chemical and Corrosion Resistance in Harsh Environments
Among the most significant benefits of alumina ceramic rounds is their superior resistance to chemical strike.
They remain inert in the existence of solid acids (except hydrofluoric acid), alkalis, organic solvents, and saline services, making them appropriate for usage in chemical processing, pharmaceutical manufacturing, and marine applications where metal parts would certainly corrode quickly.
This inertness stops contamination of delicate media, an important consider food handling, semiconductor fabrication, and biomedical equipment.
Unlike steel balls, alumina does not create rust or metal ions, guaranteeing process purity and minimizing maintenance regularity.
Their non-magnetic nature further prolongs applicability to MRI-compatible devices and digital production line where magnetic interference must be avoided.
3.2 Use Resistance and Long Life Span
In abrasive or high-cycle atmospheres, alumina ceramic rounds display wear rates orders of size lower than steel or polymer options.
This outstanding resilience equates into prolonged solution periods, decreased downtime, and reduced total cost of ownership despite greater first procurement expenses.
They are extensively utilized as grinding media in round mills for pigment diffusion, mineral handling, and nanomaterial synthesis, where their inertness stops contamination and their hardness ensures reliable particle size decrease.
In mechanical seals and shutoff parts, alumina balls preserve limited tolerances over numerous cycles, standing up to disintegration from particulate-laden fluids.
4. Industrial and Arising Applications
4.1 Bearings, Valves, and Fluid Handling Systems
Alumina ceramic spheres are indispensable to hybrid ball bearings, where they are paired with steel or silicon nitride races to combine the reduced density and deterioration resistance of ceramics with the durability of steels.
Their reduced density (~ 3.9 g/cm TWO, about 40% lighter than steel) lowers centrifugal packing at high rotational speeds, making it possible for quicker procedure with lower warm generation and enhanced power efficiency.
Such bearings are utilized in high-speed spindles, oral handpieces, and aerospace systems where reliability under severe problems is vital.
In liquid control applications, alumina balls work as check valve components in pumps and metering tools, especially for aggressive chemicals, high-purity water, or ultra-high vacuum cleaner systems.
Their smooth surface and dimensional security ensure repeatable sealing performance and resistance to galling or confiscating.
4.2 Biomedical, Energy, and Advanced Technology Utilizes
Beyond typical commercial roles, alumina ceramic balls are locating use in biomedical implants and analysis devices due to their biocompatibility and radiolucency.
They are used in synthetic joints and oral prosthetics where wear particles have to be reduced to avoid inflammatory feedbacks.
In power systems, they operate as inert tracers in tank characterization or as heat-stable parts in concentrated solar energy and fuel cell settings up.
Research is also discovering functionalized alumina spheres for catalytic support, sensing unit elements, and precision calibration requirements in assessment.
In summary, alumina ceramic balls exhibit just how innovative ceramics link the gap between architectural effectiveness and functional precision.
Their special mix of firmness, chemical inertness, thermal stability, and dimensional precision makes them vital in demanding design systems throughout varied industries.
As producing methods continue to boost, their performance and application range are expected to expand better right into next-generation innovations.
