1. Product Basics and Crystallographic Characteristic
1.1 Stage Make-up and Polymorphic Habits

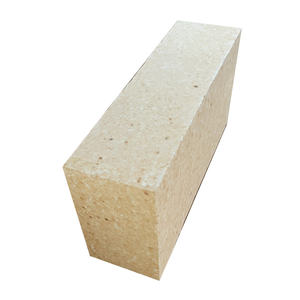

(Alumina Ceramic Blocks)
Alumina (Al â O TWO), especially in its α-phase form, is among one of the most extensively made use of technological porcelains because of its outstanding equilibrium of mechanical stamina, chemical inertness, and thermal security.
While light weight aluminum oxide exists in a number of metastable stages (Îł, ÎŽ, Ξ, Îș), α-alumina is the thermodynamically secure crystalline structure at heats, defined by a dense hexagonal close-packed (HCP) plan of oxygen ions with aluminum cations occupying two-thirds of the octahedral interstitial websites.
This gotten structure, known as diamond, provides high latticework energy and strong ionic-covalent bonding, resulting in a melting point of around 2054 ° C and resistance to phase makeover under severe thermal problems.
The change from transitional aluminas to α-Al two O two normally takes place over 1100 ° C and is come with by significant volume contraction and loss of area, making stage control critical throughout sintering.
High-purity α-alumina blocks (> 99.5% Al â O THREE) display premium efficiency in severe settings, while lower-grade compositions (90– 95%) may consist of secondary stages such as mullite or glazed grain boundary stages for affordable applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is exceptionally influenced by microstructural functions consisting of grain size, porosity, and grain limit communication.
Fine-grained microstructures (grain dimension < 5 ”m) generally give greater flexural toughness (up to 400 MPa) and boosted fracture strength compared to grainy equivalents, as smaller sized grains impede crack propagation.
Porosity, also at reduced levels (1– 5%), considerably lowers mechanical stamina and thermal conductivity, demanding complete densification with pressure-assisted sintering methods such as hot pushing or hot isostatic pressing (HIP).
Additives like MgO are frequently presented in trace amounts (â 0.1 wt%) to prevent unusual grain growth during sintering, making certain uniform microstructure and dimensional security.
The resulting ceramic blocks exhibit high hardness (â 1800 HV), excellent wear resistance, and low creep prices at elevated temperature levels, making them ideal for load-bearing and rough environments.
2. Production and Processing Techniques

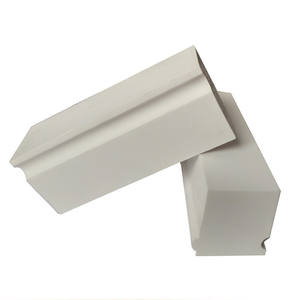

( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Methods
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders originated from calcined bauxite using the Bayer procedure or manufactured through precipitation or sol-gel courses for greater pureness.
Powders are crushed to accomplish slim bit dimension distribution, improving packing thickness and sinterability.
Shaping right into near-net geometries is accomplished via numerous developing methods: uniaxial pushing for simple blocks, isostatic pressing for uniform thickness in complicated forms, extrusion for lengthy sections, and slide casting for detailed or big elements.
Each technique affects eco-friendly body density and homogeneity, which straight impact final properties after sintering.
For high-performance applications, advanced creating such as tape spreading or gel-casting may be used to attain premium dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels between 1600 ° C and 1750 ° C makes it possible for diffusion-driven densification, where particle necks grow and pores diminish, bring about a fully dense ceramic body.
Atmosphere control and accurate thermal accounts are necessary to avoid bloating, warping, or differential shrinkage.
Post-sintering operations consist of ruby grinding, splashing, and polishing to achieve tight tolerances and smooth surface area coatings needed in securing, sliding, or optical applications.
Laser cutting and waterjet machining enable exact personalization of block geometry without causing thermal tension.
Surface treatments such as alumina coating or plasma spraying can additionally improve wear or corrosion resistance in specialized service problems.
3. Useful Properties and Performance Metrics
3.1 Thermal and Electrical Behavior
Alumina ceramic blocks exhibit modest thermal conductivity (20– 35 W/(m · K)), dramatically higher than polymers and glasses, making it possible for reliable warm dissipation in electronic and thermal management systems.
They maintain structural integrity approximately 1600 ° C in oxidizing environments, with reduced thermal growth (â 8 ppm/K), adding to excellent thermal shock resistance when properly developed.
Their high electric resistivity (> 10 Âč⎠Ω · cm) and dielectric strength (> 15 kV/mm) make them excellent electric insulators in high-voltage environments, consisting of power transmission, switchgear, and vacuum cleaner systems.
Dielectric consistent (Δᔣ â 9– 10) stays secure over a large regularity variety, sustaining usage in RF and microwave applications.
These properties make it possible for alumina obstructs to work accurately in settings where natural products would certainly weaken or fall short.
3.2 Chemical and Ecological Longevity
One of the most beneficial features of alumina blocks is their exceptional resistance to chemical assault.
They are very inert to acids (other than hydrofluoric and warm phosphoric acids), alkalis (with some solubility in strong caustics at raised temperature levels), and molten salts, making them ideal for chemical processing, semiconductor construction, and pollution control equipment.
Their non-wetting actions with many molten steels and slags enables usage in crucibles, thermocouple sheaths, and furnace cellular linings.
Additionally, alumina is safe, biocompatible, and radiation-resistant, increasing its energy right into medical implants, nuclear securing, and aerospace components.
Very little outgassing in vacuum settings additionally certifies it for ultra-high vacuum cleaner (UHV) systems in study and semiconductor production.
4. Industrial Applications and Technical Integration
4.1 Architectural and Wear-Resistant Components
Alumina ceramic blocks act as essential wear components in industries varying from extracting to paper manufacturing.
They are made use of as linings in chutes, receptacles, and cyclones to stand up to abrasion from slurries, powders, and granular materials, dramatically expanding service life compared to steel.
In mechanical seals and bearings, alumina obstructs offer low friction, high hardness, and deterioration resistance, lowering upkeep and downtime.
Custom-shaped blocks are integrated right into reducing tools, passes away, and nozzles where dimensional security and edge retention are paramount.
Their light-weight nature (thickness â 3.9 g/cm FOUR) additionally adds to power financial savings in relocating parts.
4.2 Advanced Design and Arising Uses
Beyond typical functions, alumina blocks are increasingly utilized in sophisticated technological systems.
In electronic devices, they operate as insulating substrates, warm sinks, and laser tooth cavity parts because of their thermal and dielectric buildings.
In energy systems, they work as strong oxide fuel cell (SOFC) parts, battery separators, and combination reactor plasma-facing materials.
Additive production of alumina via binder jetting or stereolithography is emerging, making it possible for complex geometries formerly unattainable with conventional forming.
Crossbreed frameworks integrating alumina with metals or polymers with brazing or co-firing are being created for multifunctional systems in aerospace and protection.
As product scientific research developments, alumina ceramic blocks continue to evolve from passive structural elements right into active elements in high-performance, sustainable design options.
In summary, alumina ceramic blocks represent a foundational course of innovative ceramics, combining robust mechanical performance with phenomenal chemical and thermal stability.
Their versatility across industrial, digital, and scientific domain names emphasizes their long-lasting value in modern design and innovation development.
5. Distributor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality b alumina, please feel free to contact us.
