1. Fundamentals of Foam Generation and the Duty in Lightweight Concrete Systems
1.1 Principles of Air Entrainment and Cellular Structure Development

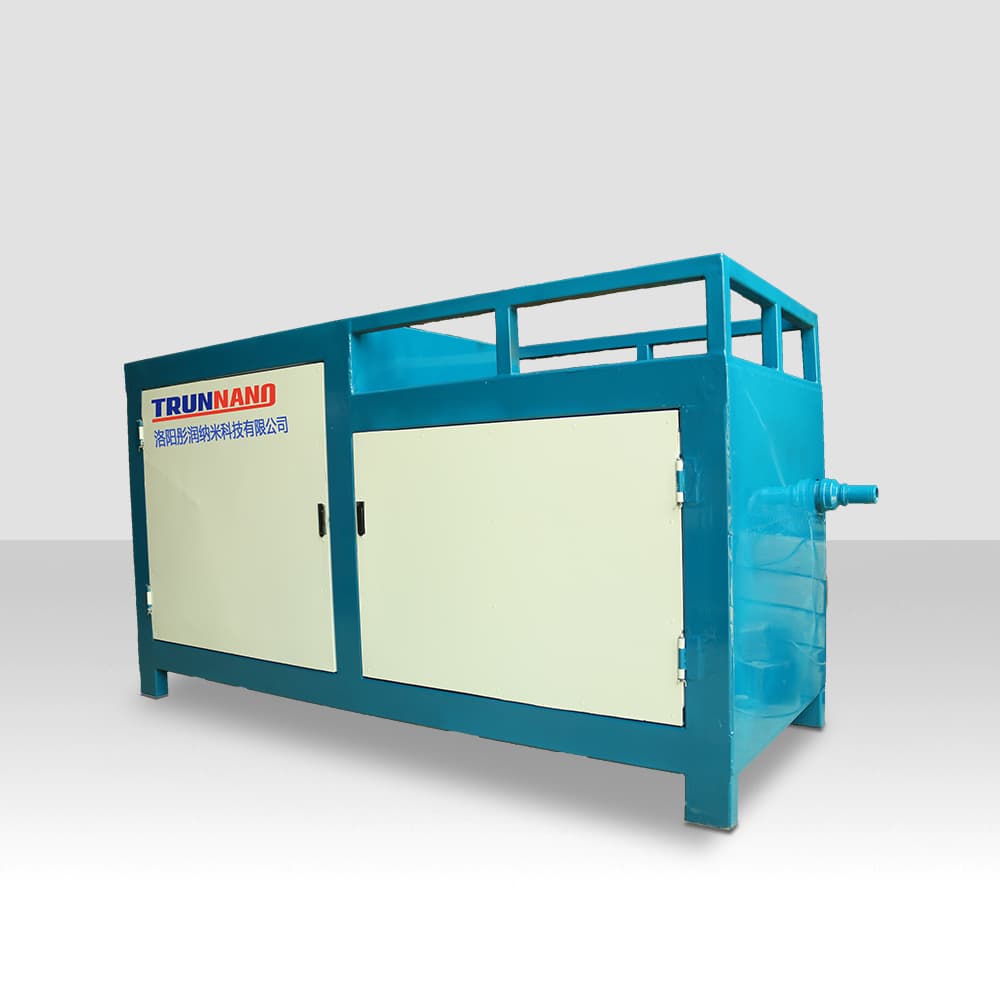

(Lightweight Concrete Foam Generators)
Light-weight concrete, a class of construction materials characterized by minimized density and improved thermal insulation, depends basically on the regulated intro of air or gas spaces within a cementitious matrix– a procedure called lathering.
The creation of these consistently dispersed, stable air cells is achieved through making use of a specialized gadget known as a foam generator, which produces fine, microscale bubbles that are subsequently blended into the concrete slurry.
These bubbles, usually ranging from 50 to 500 micrometers in diameter, come to be permanently entrained upon concrete hydration, causing a mobile concrete structure with substantially lower unit weight– often in between 300 kg/m five and 1,800 kg/m FOUR– contrasted to conventional concrete (~ 2,400 kg/m FOUR).
The foam generator is not just an auxiliary device but an important design component that identifies the high quality, uniformity, and efficiency of the final light-weight concrete item.
The procedure begins with a fluid foaming representative, usually a protein-based or artificial surfactant option, which is presented right into the generator where it is mechanically or pneumatically dispersed into a dense foam via high shear or compressed air shot.
The security and bubble dimension circulation of the produced foam straight influence crucial product homes such as compressive stamina, thermal conductivity, and workability.
1.2 Classification and Operational Devices of Foam Generators
Foam generators are broadly categorized into three main kinds based upon their functional principles: low-pressure (or wet-film), high-pressure (or dynamic), and rotating (or centrifugal) systems.
Low-pressure generators use a porous medium– such as a fine mesh, fabric, or ceramic plate– where compressed air is forced, producing bubbles as the frothing solution moves over the surface.
This method creates fairly big, much less uniform bubbles and is normally used for lower-grade applications where precise control is less vital.
High-pressure systems, in contrast, utilize a nozzle-based style where a high-velocity stream of pressed air shears the lathering liquid right into a penalty, homogeneous foam with narrow bubble dimension distribution.
These systems offer premium control over foam thickness and security, making them suitable for structural-grade lightweight concrete and precast applications.

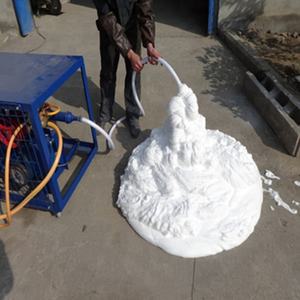

( Lightweight Concrete Foam Generators)
Rotating foam generators make use of a spinning disk or drum that flings the lathering remedy right into a stream of air, creating bubbles via mechanical dispersion.
While much less exact than high-pressure systems, rotary generators are valued for their robustness, ease of upkeep, and constant result, suitable for large-scale on-site putting procedures.
The option of foam generator kind depends upon project-specific needs, consisting of preferred concrete thickness, manufacturing volume, and performance specifications.
2. Material Scientific Research Behind Foam Security and Concrete Performance
2.1 Foaming Agents and Interfacial Chemistry
The effectiveness of a foam generator is inherently linked to the chemical make-up and physical habits of the lathering representative.
Lathering agents are surfactants that decrease the surface tension of water, enabling the development of secure air-liquid user interfaces.
Protein-based representatives, originated from hydrolyzed keratin or albumin, generate durable, flexible foam films with superb security and are frequently liked in structural applications.
Artificial agents, such as alkyl sulfonates or ethoxylated alcohols, offer faster foam generation and reduced price yet may create much less stable bubbles under long term blending or unfavorable environmental conditions.
The molecular structure of the surfactant identifies the density and mechanical strength of the lamellae (slim fluid movies) bordering each bubble, which need to withstand coalescence and drain during mixing and curing.
Ingredients such as viscosity modifiers, stabilizers, and pH buffers are often integrated right into lathering services to boost foam perseverance and compatibility with concrete chemistry.
2.2 Impact of Foam Characteristics on Concrete Properties
The physical features of the produced foam– bubble size, size distribution, air content, and foam density– directly determine the macroscopic behavior of light-weight concrete.
Smaller, consistently dispersed bubbles improve mechanical stamina by reducing stress and anxiety concentration points and creating a much more homogeneous microstructure.
On the other hand, larger or irregular bubbles can work as imperfections, lowering compressive toughness and enhancing leaks in the structure.
Foam security is equally essential; premature collapse or coalescence during mixing bring about non-uniform thickness, segregation, and decreased insulation performance.
The air-void system also affects thermal conductivity, with finer, closed-cell structures giving exceptional insulation because of entraped air’s reduced thermal diffusivity.
Furthermore, the water material of the foam affects the water-cement ratio of the last mix, requiring exact calibration to stay clear of compromising the cement matrix or postponing hydration.
Advanced foam generators currently incorporate real-time tracking and responses systems to keep constant foam result, guaranteeing reproducibility across batches.
3. Integration in Modern Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses of Foamed Concrete
Lightweight concrete created using foam generators is used across a wide spectrum of building and construction applications, varying from insulation panels and void loading to bearing walls and sidewalk systems.
In structure envelopes, frothed concrete provides excellent thermal and acoustic insulation, adding to energy-efficient layouts and lowered heating and cooling tons.
Its low thickness additionally reduces architectural dead tons, allowing for smaller foundations and longer spans in skyscraper and bridge building.
In civil design, it is utilized for trench backfilling, tunneling, and incline stabilization, where its self-leveling and low-stress qualities stop ground disturbance and enhance safety.
Precast makers use high-precision foam generators to generate light-weight blocks, panels, and architectural components with limited dimensional tolerances and constant high quality.
Moreover, foamed concrete exhibits fundamental fire resistance as a result of its low thermal conductivity and lack of natural parts, making it suitable for fire-rated assemblies and easy fire security systems.
3.2 Automation, Scalability, and On-Site Production Systems
Modern building demands quick, scalable, and dependable production of light-weight concrete, driving the combination of foam generators into automated batching and pumping systems.
Totally automated plants can integrate foam generation with cement blending, water application, and additive shot, allowing constant manufacturing with marginal human treatment.
Mobile foam generator systems are increasingly deployed on construction websites, allowing for on-demand fabrication of foamed concrete straight at the factor of usage, minimizing transportation expenses and product waste.
These systems are commonly geared up with digital controls, remote monitoring, and data logging abilities to ensure conformity with design specs and high quality standards.
The scalability of foam generation innovation– from little portable units to industrial-scale systems– supports its fostering in both established and arising markets, advertising lasting structure practices internationally.
4. Technological Innovations and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Emerging innovations in foam generator style concentrate on improving precision, performance, and flexibility with digitalization and sensor combination.
Smart foam generators geared up with stress sensing units, flow meters, and optical bubble analyzers can dynamically change air-to-liquid proportions and monitor foam high quality in genuine time.
Machine learning algorithms are being explored to predict foam habits based on ecological conditions, raw material variations, and historic efficiency data.
Such improvements aim to reduce batch-to-batch variability and enhance product efficiency, particularly in high-stakes applications like nuclear securing or overseas construction.
4.2 Sustainability, Environmental Impact, and Environment-friendly Product Assimilation
As the building and construction industry approaches decarbonization, foam generators play a role in lowering the ecological impact of concrete.
By lowering product thickness, less concrete is needed each volume, directly minimizing CO two exhausts associated with cement production.
Additionally, foamed concrete can incorporate extra cementitious products (SCMs) such as fly ash, slag, or silica fume, improving sustainability without compromising performance.
Research study is also underway to develop bio-based foaming representatives originated from eco-friendly sources, decreasing reliance on petrochemical surfactants.
Future growths might include energy-efficient foam generation approaches, combination with carbon capture modern technologies, and recyclable concrete formulas enabled by steady cellular frameworks.
To conclude, the lightweight concrete foam generator is even more than a mechanical gadget– it is a critical enabler of advanced material engineering in modern building and construction.
By exactly managing the design of air voids at the microscale, it transforms conventional concrete into a multifunctional, lasting, and high-performance product.
As technology advances, foam generators will certainly continue to drive development in structure science, infrastructure strength, and ecological stewardship.
