Introduction to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has acquired extensive recognition for its extraordinary thermal conductivity, electric insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal framework, AlN shows a distinct mix of properties that make it the most perfect substrate product for applications in electronic devices, optoelectronics, power components, and high-temperature atmospheres. Its ability to successfully dissipate warmth while preserving excellent dielectric stamina settings AlN as a premium alternative to traditional ceramic substrates such as alumina and beryllium oxide. This short article checks out the basic characteristics of light weight aluminum nitride porcelains, looks into fabrication techniques, and highlights its important functions across innovative technological domains.

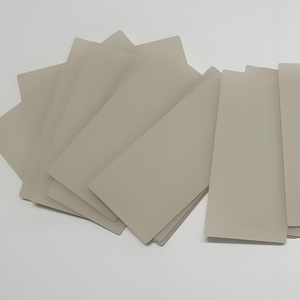

(Aluminum Nitride Ceramics)
Crystal Structure and Essential Residence
The performance of light weight aluminum nitride as a substratum product is mostly dictated by its crystalline framework and intrinsic physical buildings. AlN embraces a wurtzite-type latticework composed of rotating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– normally surpassing 180 W/(m · K), with some high-purity samples accomplishing over 320 W/(m · K). This worth substantially exceeds those of other widely used ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a broad bandgap of approximately 6.2 eV, causing exceptional electric insulation properties even at heats. It also demonstrates low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor device packaging. Moreover, AlN displays high chemical inertness and resistance to thaw metals, improving its viability for harsh settings. These combined features establish AlN as a prominent candidate for high-power electronic substratums and thermally handled systems.
Fabrication and Sintering Technologies
Producing high-quality light weight aluminum nitride porcelains calls for accurate powder synthesis and sintering strategies to achieve dense microstructures with minimal pollutants. As a result of its covalent bonding nature, AlN does not conveniently compress through conventional pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y TWO O FIVE), calcium oxide (CaO), or uncommon planet components are commonly included in promote liquid-phase sintering and improve grain border diffusion.
The manufacture procedure usually starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are then grated, formed using methods like tape spreading or injection molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Hot pushing or stimulate plasma sintering (SPS) can even more boost thickness and thermal conductivity by minimizing porosity and promoting grain alignment. Advanced additive production strategies are additionally being checked out to produce complex-shaped AlN elements with tailored thermal administration capacities.
Application in Digital Product Packaging and Power Modules
Among one of the most prominent uses of light weight aluminum nitride ceramics remains in digital product packaging, specifically for high-power tools such as insulated entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness boost in contemporary electronics, reliable warm dissipation comes to be essential to make certain dependability and long life. AlN substrates give an optimal solution by integrating high thermal conductivity with outstanding electrical seclusion, preventing brief circuits and thermal runaway problems.
Furthermore, AlN-based straight adhered copper (DBC) and active steel brazed (AMB) substrates are increasingly employed in power component styles for electric vehicles, renewable energy inverters, and commercial electric motor drives. Contrasted to typical alumina or silicon nitride substratums, AlN provides quicker warm transfer and much better compatibility with silicon chip coefficients of thermal expansion, thereby decreasing mechanical stress and anxiety and boosting general system efficiency. Ongoing study aims to improve the bonding toughness and metallization strategies on AlN surface areas to more broaden its application scope.
Use in Optoelectronic and High-Temperature Instruments
Past electronic packaging, light weight aluminum nitride ceramics play a vital role in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is extensively made use of as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications requiring sterilization, sensing, and optical communication. Its wide bandgap and low absorption coefficient in the UV variety make it an optimal prospect for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s ability to work reliably at temperature levels exceeding 1000 ° C makes it suitable for use in sensing units, thermoelectric generators, and components exposed to extreme thermal tons. In aerospace and protection sectors, AlN-based sensor plans are used in jet engine tracking systems and high-temperature control units where standard products would fail. Constant innovations in thin-film deposition and epitaxial development techniques are increasing the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Dependability
A crucial factor to consider for any substrate product is its lasting reliability under functional anxieties. Aluminum nitride shows superior ecological stability contrasted to lots of various other porcelains. It is extremely resistant to deterioration from acids, alkalis, and molten metals, guaranteeing sturdiness in hostile chemical environments. However, AlN is prone to hydrolysis when revealed to dampness at elevated temperatures, which can degrade its surface area and decrease thermal performance.
To alleviate this concern, safety coatings such as silicon nitride (Si four N ₄), aluminum oxide, or polymer-based encapsulation layers are usually put on boost wetness resistance. Furthermore, mindful sealing and product packaging techniques are carried out during device setting up to maintain the integrity of AlN substratums throughout their life span. As environmental policies end up being a lot more strict, the safe nature of AlN likewise positions it as a favored choice to beryllium oxide, which presents health threats during processing and disposal.
Verdict
Light weight aluminum nitride ceramics represent a course of sophisticated materials uniquely matched to address the growing needs for efficient thermal management and electrical insulation in high-performance electronic and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them the most excellent substrate product for a variety of applications– from vehicle power components to deep UV LEDs and high-temperature sensing units. As manufacture modern technologies remain to develop and economical manufacturing approaches grow, the fostering of AlN substrates is expected to rise considerably, driving development in next-generation digital and photonic gadgets.
