1. The Nanoscale Style and Material Scientific Research of Aerogels
1.1 Genesis and Basic Structure of Aerogel Materials

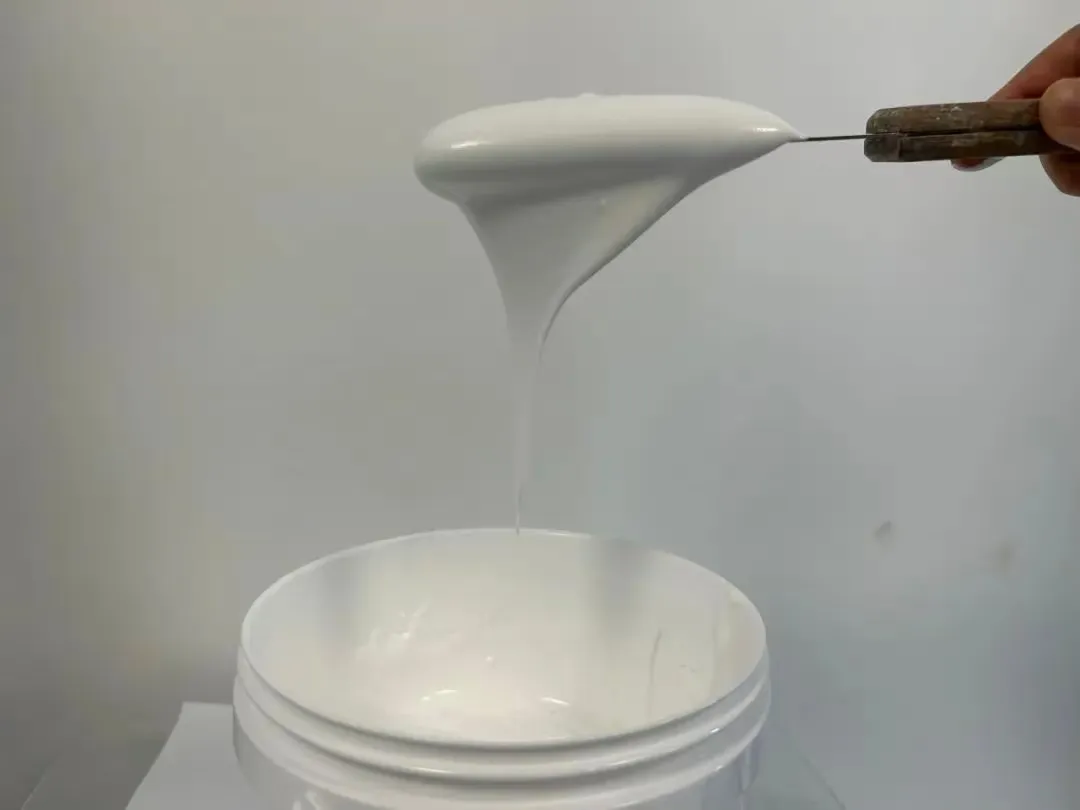

(Aerogel Insulation Coatings)
Aerogel insulation finishings represent a transformative improvement in thermal administration innovation, rooted in the special nanostructure of aerogels– ultra-lightweight, permeable materials stemmed from gels in which the liquid element is changed with gas without collapsing the solid network.
First established in the 1930s by Samuel Kistler, aerogels remained largely laboratory interests for decades due to delicacy and high manufacturing prices.
However, recent advancements in sol-gel chemistry and drying strategies have actually allowed the integration of aerogel bits right into versatile, sprayable, and brushable layer formulations, unlocking their capacity for extensive industrial application.
The core of aerogel’s exceptional insulating ability depends on its nanoscale porous framework: normally composed of silica (SiO TWO), the material displays porosity exceeding 90%, with pore dimensions mostly in the 2– 50 nm range– well listed below the mean totally free course of air particles (~ 70 nm at ambient problems).
This nanoconfinement substantially minimizes gaseous thermal conduction, as air particles can not efficiently transfer kinetic power through accidents within such confined areas.
All at once, the solid silica network is engineered to be extremely tortuous and discontinuous, lessening conductive warm transfer through the strong stage.
The result is a product with among the most affordable thermal conductivities of any solid understood– typically in between 0.012 and 0.018 W/m · K at room temperature– surpassing traditional insulation materials like mineral woollen, polyurethane foam, or increased polystyrene.
1.2 Development from Monolithic Aerogels to Composite Coatings
Early aerogels were produced as weak, monolithic blocks, limiting their use to specific niche aerospace and clinical applications.
The change toward composite aerogel insulation finishings has been driven by the need for versatile, conformal, and scalable thermal barriers that can be related to complex geometries such as pipes, shutoffs, and uneven devices surfaces.
Modern aerogel coatings incorporate finely crushed aerogel granules (commonly 1– 10 µm in diameter) distributed within polymeric binders such as polymers, silicones, or epoxies.

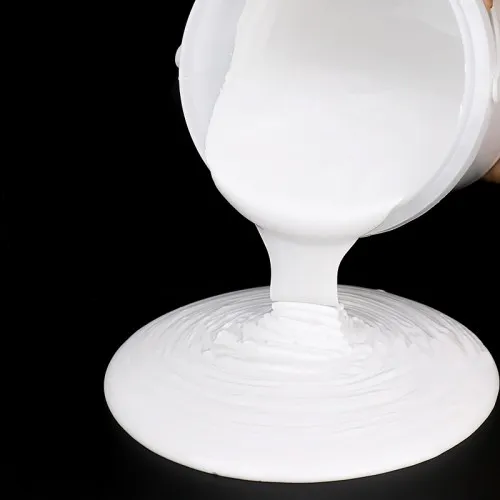

( Aerogel Insulation Coatings)
These hybrid formulations preserve a lot of the innate thermal efficiency of pure aerogels while gaining mechanical robustness, attachment, and weather resistance.
The binder stage, while somewhat increasing thermal conductivity, offers essential communication and allows application using basic commercial methods consisting of spraying, rolling, or dipping.
Most importantly, the volume fraction of aerogel particles is maximized to stabilize insulation efficiency with movie stability– typically ranging from 40% to 70% by volume in high-performance formulations.
This composite method protects the Knudsen effect (the suppression of gas-phase conduction in nanopores) while enabling tunable residential or commercial properties such as flexibility, water repellency, and fire resistance.
2. Thermal Efficiency and Multimodal Heat Transfer Suppression
2.1 Devices of Thermal Insulation at the Nanoscale
Aerogel insulation coverings accomplish their exceptional efficiency by simultaneously suppressing all three modes of warm transfer: transmission, convection, and radiation.
Conductive warm transfer is lessened through the combination of low solid-phase connectivity and the nanoporous structure that hampers gas particle motion.
Since the aerogel network consists of incredibly thin, interconnected silica strands (frequently just a couple of nanometers in size), the pathway for phonon transportation (heat-carrying latticework resonances) is highly restricted.
This architectural style efficiently decouples surrounding regions of the covering, reducing thermal connecting.
Convective warm transfer is inherently missing within the nanopores as a result of the inability of air to develop convection currents in such confined spaces.
Even at macroscopic ranges, effectively applied aerogel layers remove air gaps and convective loops that pester typical insulation systems, particularly in upright or above installations.
Radiative warmth transfer, which ends up being substantial at raised temperature levels (> 100 ° C), is reduced via the unification of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These additives boost the finish’s opacity to infrared radiation, spreading and taking in thermal photons prior to they can pass through the covering density.
The harmony of these systems leads to a product that provides equivalent insulation efficiency at a fraction of the density of standard products– often accomplishing R-values (thermal resistance) a number of times greater per unit density.
2.2 Performance Across Temperature and Environmental Conditions
Among one of the most compelling advantages of aerogel insulation coatings is their constant efficiency throughout a broad temperature spectrum, commonly varying from cryogenic temperature levels (-200 ° C) to over 600 ° C, depending upon the binder system made use of.
At low temperatures, such as in LNG pipes or refrigeration systems, aerogel finishes prevent condensation and minimize warm ingress extra efficiently than foam-based alternatives.
At heats, particularly in commercial process tools, exhaust systems, or power generation centers, they protect underlying substratums from thermal destruction while lessening energy loss.
Unlike natural foams that may decay or char, silica-based aerogel coatings remain dimensionally steady and non-combustible, contributing to easy fire security strategies.
Additionally, their low water absorption and hydrophobic surface treatments (often achieved via silane functionalization) avoid efficiency deterioration in humid or wet atmospheres– an usual failure setting for coarse insulation.
3. Formulation Strategies and Functional Assimilation in Coatings
3.1 Binder Selection and Mechanical Property Engineering
The choice of binder in aerogel insulation coverings is critical to balancing thermal performance with durability and application versatility.
Silicone-based binders use superb high-temperature security and UV resistance, making them suitable for outside and industrial applications.
Acrylic binders provide excellent bond to steels and concrete, along with ease of application and low VOC discharges, perfect for developing envelopes and HVAC systems.
Epoxy-modified solutions boost chemical resistance and mechanical strength, beneficial in marine or destructive environments.
Formulators additionally incorporate rheology modifiers, dispersants, and cross-linking representatives to make certain consistent fragment distribution, protect against working out, and boost movie formation.
Flexibility is thoroughly tuned to stay clear of cracking throughout thermal cycling or substrate deformation, especially on vibrant frameworks like development joints or shaking equipment.
3.2 Multifunctional Enhancements and Smart Coating Possible
Past thermal insulation, contemporary aerogel finishes are being engineered with additional performances.
Some solutions consist of corrosion-inhibiting pigments or self-healing agents that prolong the life expectancy of metal substrates.
Others integrate phase-change products (PCMs) within the matrix to give thermal power storage space, smoothing temperature level variations in buildings or digital rooms.
Arising research checks out the combination of conductive nanomaterials (e.g., carbon nanotubes) to allow in-situ surveillance of finish integrity or temperature level circulation– paving the way for “clever” thermal monitoring systems.
These multifunctional capabilities setting aerogel finishings not merely as passive insulators yet as active parts in smart framework and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Fostering
4.1 Power Efficiency in Building and Industrial Sectors
Aerogel insulation layers are increasingly released in commercial buildings, refineries, and nuclear power plant to reduce energy usage and carbon emissions.
Applied to vapor lines, boilers, and warm exchangers, they considerably lower warm loss, improving system effectiveness and minimizing fuel demand.
In retrofit situations, their thin account allows insulation to be included without major architectural alterations, maintaining area and lessening downtime.
In property and industrial construction, aerogel-enhanced paints and plasters are used on wall surfaces, roof coverings, and home windows to boost thermal comfort and reduce HVAC lots.
4.2 Niche and High-Performance Applications
The aerospace, automobile, and electronic devices industries take advantage of aerogel finishings for weight-sensitive and space-constrained thermal monitoring.
In electrical vehicles, they protect battery loads from thermal runaway and external warm resources.
In electronics, ultra-thin aerogel layers protect high-power parts and protect against hotspots.
Their use in cryogenic storage space, room habitats, and deep-sea equipment highlights their integrity in severe environments.
As manufacturing scales and expenses decline, aerogel insulation coverings are poised to come to be a keystone of next-generation lasting and resistant framework.
