1. Basic Framework and Material Make-up
1.1 The Nanoscale Design of Aerogels

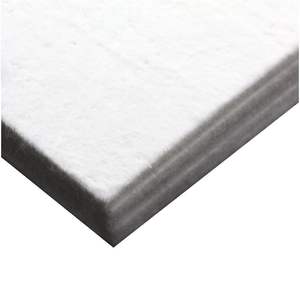

(Aerogel Blanket)
Aerogel blankets are innovative thermal insulation products built on a special nanostructured framework, where a strong silica or polymer network extends an ultra-high porosity volume– normally surpassing 90% air.
This structure originates from the sol-gel process, in which a liquid precursor (usually tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a wet gel, complied with by supercritical or ambient stress drying out to remove the liquid without collapsing the delicate porous network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in size) forming pores on the range of 10– 50 nm, little enough to subdue air particle motion and thus lessen conductive and convective warmth transfer.
This phenomenon, referred to as Knudsen diffusion, drastically lowers the reliable thermal conductivity of the material, typically to worths between 0.012 and 0.018 W/(m · K) at space temperature– among the most affordable of any kind of strong insulator.
In spite of their reduced thickness (as reduced as 0.003 g/cm SIX), pure aerogels are naturally breakable, necessitating reinforcement for sensible use in versatile covering type.
1.2 Reinforcement and Compound Layout
To get over delicacy, aerogel powders or pillars are mechanically integrated into coarse substratums such as glass fiber, polyester, or aramid felts, creating a composite “covering” that maintains exceptional insulation while gaining mechanical toughness.
The reinforcing matrix offers tensile toughness, adaptability, and dealing with toughness, allowing the product to be reduced, bent, and mounted in intricate geometries without substantial efficiency loss.
Fiber material normally varies from 5% to 20% by weight, thoroughly balanced to reduce thermal connecting– where fibers perform warm across the blanket– while making certain structural integrity.
Some progressed styles incorporate hydrophobic surface area treatments (e.g., trimethylsilyl groups) to stop dampness absorption, which can deteriorate insulation performance and advertise microbial development.
These adjustments permit aerogel coverings to preserve secure thermal homes even in humid environments, expanding their applicability beyond regulated research laboratory problems.
2. Manufacturing Processes and Scalability

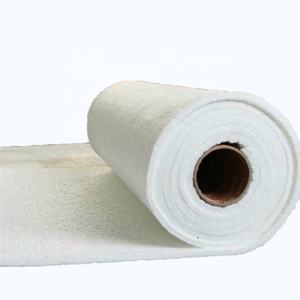

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel coverings begins with the development of a damp gel within a coarse mat, either by impregnating the substratum with a fluid forerunner or by co-forming the gel and fiber network all at once.
After gelation, the solvent need to be gotten rid of under conditions that prevent capillary stress and anxiety from breaking down the nanopores; historically, this required supercritical carbon monoxide ₂ drying out, a costly and energy-intensive process.
Recent breakthroughs have actually allowed ambient pressure drying via surface area adjustment and solvent exchange, dramatically lowering production expenses and allowing continual roll-to-roll manufacturing.
In this scalable process, long rolls of fiber floor covering are constantly covered with forerunner option, gelled, dried, and surface-treated, permitting high-volume outcome ideal for commercial applications.
This change has actually been essential in transitioning aerogel coverings from particular niche laboratory products to commercially viable items utilized in building, energy, and transportation sectors.
2.2 Quality Control and Efficiency Uniformity
Ensuring consistent pore framework, consistent thickness, and reliable thermal performance across large manufacturing batches is important for real-world deployment.
Makers employ extensive quality control steps, consisting of laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.
Batch-to-batch reproducibility is important, specifically in aerospace and oil & gas sectors, where failing because of insulation break down can have severe effects.
In addition, standardized testing according to ASTM C177 (warmth flow meter) or ISO 9288 guarantees exact reporting of thermal conductivity and makes it possible for fair contrast with standard insulators like mineral woollen or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Throughout Temperature Level Varies
Aerogel blankets display impressive thermal performance not only at ambient temperature levels but additionally across severe ranges– from cryogenic conditions below -100 ° C to high temperatures surpassing 600 ° C, relying on the base material and fiber kind.
At cryogenic temperatures, standard foams may crack or lose effectiveness, whereas aerogel blankets stay adaptable and maintain reduced thermal conductivity, making them excellent for LNG pipelines and storage tanks.
In high-temperature applications, such as industrial heaters or exhaust systems, they provide effective insulation with lowered density compared to bulkier options, saving room and weight.
Their low emissivity and ability to reflect induction heat additionally enhance efficiency in glowing barrier configurations.
This large operational envelope makes aerogel blankets distinctly functional among thermal monitoring solutions.
3.2 Acoustic and Fire-Resistant Characteristics
Past thermal insulation, aerogel blankets demonstrate notable sound-dampening residential properties as a result of their open, tortuous pore framework that dissipates acoustic power via viscous losses.
They are progressively used in automotive and aerospace cabins to lower noise pollution without including considerable mass.
Moreover, most silica-based aerogel coverings are non-combustible, achieving Course A fire scores, and do not launch toxic fumes when subjected to flame– vital for constructing security and public facilities.
Their smoke density is extremely low, improving exposure during emergency situation discharges.
4. Applications in Industry and Emerging Technologies
4.1 Power Efficiency in Structure and Industrial Equipment
Aerogel coverings are transforming energy performance in architecture and commercial engineering by making it possible for thinner, higher-performance insulation layers.
In buildings, they are used in retrofitting historical frameworks where wall thickness can not be enhanced, or in high-performance façades and home windows to decrease thermal linking.
In oil and gas, they shield pipelines bring hot liquids or cryogenic LNG, decreasing energy loss and avoiding condensation or ice development.
Their light-weight nature also reduces structural load, particularly beneficial in offshore systems and mobile devices.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets shield spacecraft from severe temperature fluctuations throughout re-entry and guard sensitive tools from thermal biking precede.
NASA has utilized them in Mars wanderers and astronaut suits for easy thermal policy.
Automotive manufacturers incorporate aerogel insulation right into electric automobile battery packs to prevent thermal runaway and improve safety and effectiveness.
Customer products, including outside apparel, footwear, and outdoor camping gear, currently feature aerogel cellular linings for premium warmth without mass.
As production prices decrease and sustainability enhances, aerogel blankets are positioned to come to be mainstream solutions in global initiatives to lower energy usage and carbon emissions.
Finally, aerogel coverings represent a convergence of nanotechnology and functional engineering, delivering unmatched thermal performance in a flexible, durable format.
Their capacity to conserve energy, area, and weight while keeping safety and environmental compatibility placements them as essential enablers of lasting technology across diverse markets.
